CLASSIFICATIONS

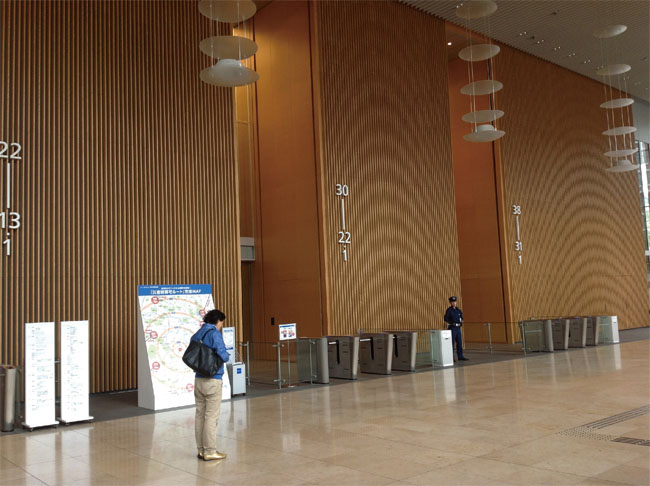

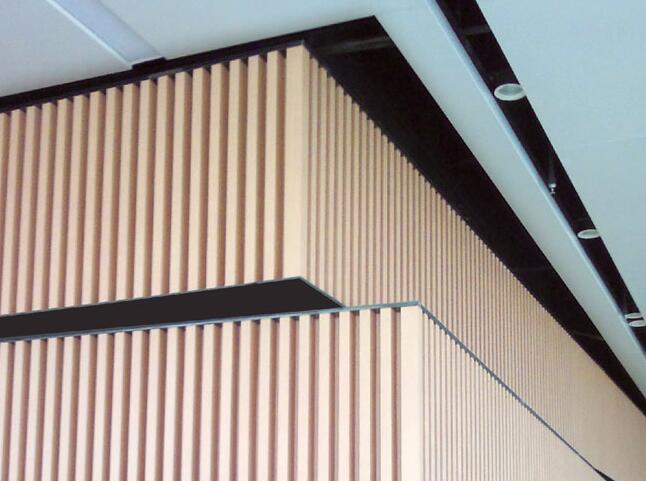

WT5040 belongs to closed indoor wall system, it can be installed vertically and horizontally, firm and with strong sense of line, a variety of wooden texture surface creates warm feeling, suitable for most of the public areas. Dedicated carrier ensures the flatness. The surface can be perforated with acoustic material backing, have good sound-absorbing function.




◆SYSTEM COMPONENT

WT5040 Ceiling System Main Material Carrier
Product Type Material Type Size
(W*H*L)mm
Thickness
(mm)
Product Type Material Type Size
(mm)
Thickness
(mm)
Concave Convex Type AA Level Aluminum Alloy (50+40)*40*
(1000-6000 )
1.0 DG02 Carrier Galvanized Steel 28.28 1.2
Structure Drawing



 ◆DESCRIPTION  ◆Application and advantages
Texture: pls refer to Pivot color chart
Distance modulus: 90mm or adjust as needed
Perforation: various perforation pattern available, Sound-absorbing paper backing, NRC=0.7
Processing: ①compression moulding ②roll-forming
Surface treatment: hot-pressing lamination (film thickness≈0.2mm)
Special size could be customized.


iCeiling®WT5040 (concave-convex type wall system) advantage:
● wood texture consistency
● easy to install
● dedicated steel carrier
● variety choice of distance modulus
